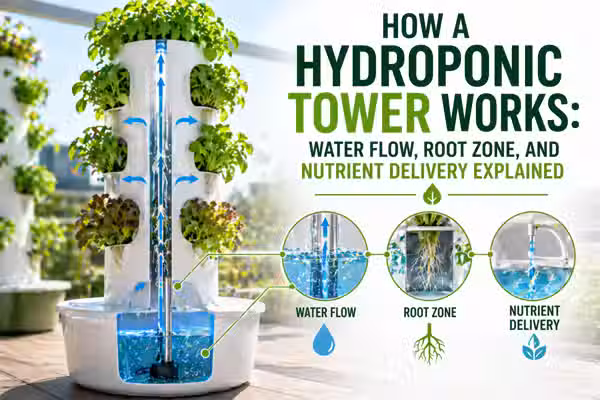

How a hydroponic tower works: water flow, root zone, and nutrient delivery explained

Key takeaways

A hydroponic tower delivers nutrients by cycling reservoir water up through a central column and letting it flow down over exposed root zones in a thin film -- the roots absorb what they need on each pass and the remainder returns to the reservoir for re-circulation.

Root zone oxygen in a tower system comes primarily from the air gap between the flowing water film and the channel wall, not from the water itself -- which means dissolved oxygen in the reservoir matters less than the physical water film thickness and flow rate.

At water temperatures above 28 degrees Celsius, dissolved oxygen in the reservoir drops below 6 mg/L, which is the threshold where root respiration is measurably impaired in fast-growing leafy crops -- a condition that occurs routinely in Bangkok towers without active reservoir cooling.

EC drift in a Bangkok hydroponic tower is directional: in ambient temperatures above 30 degrees Celsius, evaporation concentrates the reservoir faster than nutrient uptake does, meaning EC rises between top-ups even when the crop is consuming nutrients normally (Plant Mood sensor log data, 2024).

Pump cycle timing in a tower is not interchangeable with reservoir volume -- running longer cycles does not compensate for a reservoir that is too small to buffer temperature swings, and a reservoir under 15 litres in Bangkok ambient conditions will see temperature fluctuations of 3 to 5 degrees Celsius across a single day.

The root zone in the lowest tower ports receives the most nutrient-loaded water and the least oxygen on every pump cycle -- making the bottom of a tower structurally the highest-risk zone for root disease regardless of how healthy the top looks.

TL;DR

A hydroponic tower is a recirculating thin-film system where water does three jobs simultaneously: carries nutrients to the roots, removes metabolic waste, and -- when the flow is calibrated correctly -- creates the air gap that oxygenates the root zone. In Bangkok, every one of those functions is stressed by heat. The water is warmer than the roots want, evaporation concentrates the nutrient solution faster than any guide accounts for, and the dissolved oxygen that crops need drops exactly when ambient temperature peaks. Understanding the mechanics is how you know which variable to fix first when something goes wrong.

The tower that was running perfectly until it wasn't

Six weeks into a lettuce cycle on our vertical tower. EC stable at 1.4, pH holding at 6.1, pump running on a 15-minutes-on 30-minutes-off cycle. The top ports looked healthy -- good colour, no tip burn, roots white and dense. Then the bottom two rows started showing slowed growth and pale interveinal chlorosis that looked like an iron deficiency. We adjusted pH down slightly to improve iron availability. Nothing changed. We added a small chelated iron supplement. Still nothing. The bottom ports continued declining while the top half of the tower grew normally. Same reservoir. Same pump. Same nutrient solution flowing through every port.

The temperature logger we had running in the reservoir showed the answer. The bottom ports were sitting in water that had been in the reservoir at 31 degrees Celsius before being pumped up and flowing back down. By the time the solution reached the bottom ports on its return, it had warmed further from ambient and the root zone temperature was pushing 30 degrees Celsius consistently. The roots were not iron-deficient. They were oxygen-starved. The dissolved oxygen at 31 degrees Celsius in our reservoir had dropped to 5.2 mg/L -- below the threshold where root cells can efficiently drive active nutrient uptake. The iron was present. The root cells lacked the energy to absorb it. Adjusting the nutrient solution had been solving the wrong problem entirely.

What water temperature does to the system before anything else changes

Dissolved oxygen in water at 20 degrees Celsius is approximately 9.1 mg/L; at 30 degrees Celsius it drops to approximately 7.5 mg/L; at 35 degrees Celsius it falls to 6.9 mg/L -- with the critical impairment threshold for leafy crop root respiration sitting at or below 6 mg/L

Standard dissolved oxygen solubility curve, confirmed against Plant Mood reservoir sensor log data, 2024. DO measured using a calibrated electrochemical sensor in the reservoir across seasonal Bangkok temperature variation.

Reservoir temperature in our Bangkok tower without active cooling fluctuated between 27 and 33 degrees Celsius across a single day during the hot season, with the peak occurring between 2pm and 5pm when ambient room temperature reached 34 degrees Celsius

Plant Mood sensor log data, 2024. Temperature logged at 5-minute intervals using a waterproof DS18B20 sensor suspended at mid-reservoir depth. Tower location: north-facing apartment room, no air conditioning.

EC drift in our tower reservoir averaged 0.15 to 0.25 mS/cm upward per 24-hour period during Bangkok hot season without top-up, driven primarily by evaporation rather than nutrient depletion

Plant Mood sensor log data, 2024. EC logged at 15-minute intervals using an Atlas Scientific EC probe. Top-up water added without nutrients to verify that EC rise was evaporation-driven rather than crop-uptake-driven.

Root zone temperature at the bottom two ports of our 5-tier tower ran 1.5 to 2.5 degrees Celsius warmer than at the top two ports during peak ambient temperature hours, due to solution warming during transit through the column

Plant Mood sensor log data, 2024. Measured using secondary temperature probe positioned at outflow of bottom port channel versus top port channel across 14 consecutive days.

The roots in a hydroponic tower are not living in the water

In a correctly operating tower with a thin-film flow, the roots are exposed to a moving water film on one side and open air on the other. The roots actively grow toward the water film for nutrients and moisture, while the exposed root mass draws oxygen directly from the surrounding air. This air-root interface is where the majority of root zone oxygenation happens -- not from dissolved oxygen in the water. The dissolved oxygen in the reservoir matters, but it is secondary to the physical design of the root chamber. A root zone that is flooded rather than film-wetted loses the air interface entirely. When that happens, dissolved oxygen in the flowing water becomes the only oxygen source, and at Bangkok water temperatures, that source is marginal at best. The tower works because the roots are partly in air, not fully in water. Anything that eliminates that air gap -- oversized root mass blocking the channel, too-thick flow film, blocked drainage -- collapses the oxygenation mechanism entirely.

We tested this directly by comparing dissolved oxygen readings at the reservoir against visual root health scores across 8 tower cycles. Cycles where reservoir DO stayed above 7 mg/L but root chambers were poorly drained -- flow film too thick due to partial channel blockage -- showed root browning and slime formation at the same rate as cycles with low reservoir DO and good drainage. The air gap was the critical variable. Reservoir DO alone did not predict root zone health. Root chamber airflow did.

Because a hydroponic tower circulates nutrient solution continuously over the roots, most growers assume the root zone is submerged or saturated during pump cycles. The logical extension of this is that more water flow equals more nutrient delivery, and that the roots are getting oxygen from dissolved oxygen in the water itself -- the same way fish in an aquarium do.

What is actually happening at each stage of a pump cycle

A tower pump cycle has four distinct phases and the plant is doing something different in each one. During the pump-on phase, the water column fills the central pipe and solution begins flowing down through the port channels. The roots receive a fresh film of nutrient solution. Metabolic waste -- root exudates, CO2 from respiration -- is flushed away from the root surface. The thin film moving over the root mass carries dissolved nutrients in contact with root hair cells, where passive diffusion and active transport move ions across the cell membrane depending on concentration gradient and root energy state. During the pump-off phase, the residual film drains away and the air gap re-establishes. This is when oxygen enters the root zone. The roots are moist but not submerged. Root respiration accelerates because oxygen is now available. The plant uses the energy generated from respiration during the off-cycle to drive active uptake of nutrients -- particularly nitrogen, phosphorus, and potassium -- that require energy-dependent transport proteins to cross the cell membrane. The pump-off phase is not downtime. It is when the active nutrient uptake work happens.

This is why pump cycle timing matters in a way that most beginner guides do not explain. A tower running continuous pump-on has roots that are permanently film-wetted with minimal air gap. Passive diffusion of nutrients occurs but active uptake is impaired because root respiration is oxygen-limited. The plant takes up what it can by passive concentration gradient but cannot efficiently drive the energy-dependent ion pumps for micronutrients. A tower running on appropriate cycle timing -- 15 minutes on, 30 to 45 minutes off for most leafy crops in a properly designed channel -- alternates between nutrient delivery and oxygen delivery. Both phases are necessary. In Bangkok heat, the off-cycle becomes even more important because the on-cycle water is warmer and carrying less dissolved oxygen than in a temperate system, making the air-gap phase the primary oxygen source rather than a supplementary one.

Active ion transport in root cells -- the mechanism responsible for absorbing nitrate, phosphate, and most micronutrients against a concentration gradient -- is driven by ATP generated through aerobic respiration. At root zone temperatures above 30 degrees Celsius, the enzymatic efficiency of the respiratory chain decreases even when oxygen is present. This is the compounding effect in Bangkok towers: warmer water delivers less dissolved oxygen, root respiration efficiency decreases, and active uptake slows simultaneously. A nutrient solution that is correctly formulated and properly pH-adjusted can still produce deficiency symptoms at this point because the uptake mechanism, not the nutrient availability, is the limiting factor.

Vertical tower versus NFT channel versus DWC: what changes for Bangkok conditions

Vertical tower (central column, gravity-fed port channels)

Compact footprint, high plant density per square metre of floor space, suitable for apartment growing. Root zone is segmented across individual port channels with independent air gaps. Water film thickness varies by port position and flow rate. Bottom ports receive warmer, lower-DO solution than top ports on every cycle. Reservoir is typically small relative to plant mass, making it vulnerable to temperature swings and rapid EC drift in Bangkok heat. The tower geometry means root zone temperature varies by tier -- a variable most tower guides ignore entirely.

The right format for space-constrained Bangkok apartment growing when the grower understands the bottom-port oxygen limitation and manages reservoir temperature actively. Reservoir volume should be as large as the format allows -- not the minimum specified. A tower with a 20-litre reservoir in Bangkok conditions has meaningfully better temperature buffering than the same tower with a 10-litre reservoir.

NFT channel (horizontal channels, shallow recirculating film)

Root zone is exposed to a consistent film thickness across the full channel length -- no vertical temperature gradient by position. Air gap is structural to the channel geometry and not dependent on port drainage. Requires more horizontal space than a tower. Reservoir can be sized more generously relative to plant mass. Solution temperature is consistent across all plants. Flow rate and film thickness are more precisely controllable than in a tower port. Easier to inspect root health along the full channel without dismantling the system.

Better oxygen delivery consistency than a tower in Bangkok conditions because the horizontal geometry eliminates the vertical temperature gradient. The trade-off is footprint. For a grower with a balcony or dedicated grow room rather than a single apartment shelf, NFT channels give more predictable root zone conditions across the full crop. For a grower optimising for vertical space, the tower wins on density despite the root zone management complexity.

DWC (deep water culture, roots submerged in oxygenated reservoir)

Roots are permanently submerged in the nutrient solution, making dissolved oxygen in the reservoir the sole oxygen source -- the air gap mechanism does not apply. Requires an air pump and airstone running continuously to maintain DO above the critical threshold. In Bangkok water temperatures above 30 degrees Celsius, maintaining adequate DO in a DWC reservoir without active cooling is difficult -- the solubility ceiling drops exactly when ambient temperature peaks. Reservoir is large by design, which improves temperature buffering but also means any contamination event affects the entire crop simultaneously.

DWC is the most demanding system to manage in Bangkok heat precisely because it has no passive oxygen delivery mechanism -- it relies entirely on dissolved oxygen that decreases as water warms. A tower with adequate off-cycle timing retains some root zone oxygenation even when reservoir DO drops. A DWC system at 32 degrees Celsius with insufficient aeration has no fallback. For Bangkok apartment growers without active cooling, DWC requires more attention to dissolved oxygen management than a tower or NFT system.

What the sensor logs showed across our Bangkok tower cycles

Across 14 logged tower cycles, pH in the reservoir drifted upward -- toward alkalinity -- during peak ambient temperature hours and stabilised or drifted slightly downward overnight. The pattern was consistent enough across cycles that we could predict the pH reading at 3pm from the 9am reading and the forecast ambient temperature with reasonable accuracy. The mechanism is evaporation-driven concentration of bicarbonates and carbonate alkalinity in the reservoir, accelerated at higher temperatures. Standard advice says check and adjust pH daily. Our data showed that in Bangkok hot season, a pH check at 9am and 5pm captured the full range of drift and that a single daily check at noon was consistently catching the high-drift period and leading to over-correction.

pH drift in the tower was directional and temperature-correlated, not random

pH management in a Bangkok tower is a time-of-day problem as much as a chemistry problem. Adjusting at the same time each day produces inconsistent results because the drift rate varies with ambient temperature across the day. Checking at two fixed points -- morning before ambient temperature rises and late afternoon at peak -- gives a more accurate picture of the actual range the roots are experiencing than a single daily check.

In two cycles where reservoir temperature consistently exceeded 30 degrees Celsius, we extended pump on-time from 15 minutes to 25 minutes per cycle, reasoning that more frequent water contact would increase nutrient delivery and offset the reduced active uptake. Growth rate did not improve. In one of those cycles it worsened, likely because the extended on-time reduced the air-gap phase and further impaired root zone oxygenation. The intervention was logical but targeted the wrong mechanism. The roots were not receiving inadequate nutrient film exposure. They were unable to use the nutrients being delivered because the root respiration rate was suppressed by heat.

Pump cycle extension did not compensate for reservoir temperature problems

When a Bangkok tower underperforms in hot conditions, the correct diagnostic question is not how much water is reaching the roots -- it is whether the roots can metabolically process what is already arriving. Extending pump cycles, increasing nutrient concentration, or adjusting pH in response to heat-driven underperformance are all interventions that work on the delivery side of a problem that exists on the uptake side. The fix for heat-impaired uptake is reservoir temperature management, not nutrient solution adjustment.

We ran parallel tower cycles across two towers with identical nutrient formulas and pump timing but different reservoir sizes -- 12 litres and 22 litres -- across the Bangkok hot season. The 22-litre tower showed peak reservoir temperature 2.1 degrees Celsius lower than the 12-litre tower on the same days, and EC drift was 40 percent slower. Crop growth consistency across tiers was higher on the larger reservoir tower. The nutrient formula was identical. The temperature buffering provided by additional water volume produced the outcome difference. This was not a finding we expected going into the comparison -- the formula was what we were evaluating.

Reservoir volume had a larger effect on crop consistency than nutrient formula across Bangkok seasonal variation

For Bangkok apartment growers choosing or building a tower system, reservoir volume is an underweighted specification. Most commercial towers are sold with reservoirs sized for minimum viable operation. In a temperate climate, that is adequate. In Bangkok, a larger reservoir is a direct investment in crop consistency across the hot season, and the return on that investment is more predictable than the return on upgrading the nutrient formula.

Plant Mood sensor log data, 2024

What tower growers say is wrong and what the system is actually telling them

My EC keeps rising even though the plants are growing and should be consuming nutrients

In Bangkok ambient temperatures above 30 degrees Celsius, evaporation removes water from the reservoir faster than the crop removes ions from the nutrient solution. The result is a shrinking volume of water carrying the same or nearly the same total dissolved solids -- which registers as rising EC. The crop is consuming nutrients normally. The water is leaving faster. Topping up with plain water rather than nutrient solution corrects the EC without adding ions the reservoir does not need. Growers who top up with nutrient solution in response to rising EC are compounding the concentration and will eventually need to do a full reservoir flush to reset.

The bottom of my tower is always the first place I see problems -- slow growth, discolouration, root slime -- but the top looks healthy

The bottom ports receive solution that has already transited the full tower column and warmed along the way. In a Bangkok tower without reservoir cooling, that solution arrives at the bottom ports at a higher temperature and lower dissolved oxygen level than it left the reservoir. The bottom ports also drain last, meaning the air-gap restoration after a pump cycle takes longest at the bottom. The combination of warmer, lower-DO solution and slower air-gap recovery makes the bottom ports the structurally weakest zone in every tower cycle. This is not a symptom of a specific problem -- it is the default condition of the tower geometry in a hot climate. Managing it requires either active reservoir cooling, a shorter pump on-cycle to limit solution warming in transit, or accepting that bottom port crops need monitoring at a higher frequency than top port crops.

My plants look like they have a nutrient deficiency but I tested the solution and everything is in range

Nutrient availability and nutrient uptake are not the same measurement. A solution with correct EC, correct pH, and verified macro and micronutrient concentrations can still fail to deliver adequate nutrition if the root zone is too warm to drive active ion transport. The deficiency symptoms are real -- the cells are not receiving enough of the nutrient -- but the cause is root metabolic impairment from heat, not solution chemistry. This is one of the most common misdiagnoses in Bangkok tower growing. Testing the solution confirms the delivery side is working. It says nothing about whether the uptake side is functional. Checking reservoir temperature alongside solution chemistry is the diagnostic step that most growers skip.

My pump runs on the schedule the manufacturer recommended but the roots still look stressed

Manufacturer pump cycle recommendations are written for temperate climate operation, typically at water temperatures of 18 to 22 degrees Celsius and ambient temperatures of 20 to 24 degrees Celsius. At Bangkok water temperatures of 28 to 32 degrees Celsius, the dissolved oxygen in the solution is lower, root respiration is more dependent on the air-gap phase, and the recommended on-time may be leaving too little off-time for adequate air-gap oxygenation. The manufacturer schedule is a starting point, not a prescription for Bangkok conditions. A shorter on-cycle and longer off-cycle is usually the correct adaptation -- 10 minutes on and 45 minutes off rather than 15 on and 30 off -- specifically to extend the air-gap recovery phase in a hot root zone.

What a well-managed Bangkok tower operation actually looks like

Grower at system setup

Size the reservoir as large as the tower format allows, not as small as the manufacturer specifies as minimum. In Bangkok conditions, every additional litre of reservoir volume is a buffer against temperature swing and EC drift. A 20-litre reservoir on a tower designed for 12 litres is not overfilling -- it is correct specification for a hot climate.

Peak reservoir temperature during Bangkok hot season runs 1.5 to 2.5 degrees Celsius lower than a minimum-volume reservoir in the same location, and EC drift rate slows enough that daily top-up management becomes more predictable.

Grower at pump cycle configuration

Start with a shorter on-cycle and longer off-cycle than the manufacturer default if operating without active reservoir cooling. A 10-minutes-on, 45-minutes-off cycle preserves the air-gap phase that Bangkok towers depend on for root oxygenation. Extend on-time only if roots in upper ports show dryness or wilting between cycles -- not as a default response to any growth problem.

Root zone air gap re-establishes fully between cycles. Root browning and slime formation at bottom ports reduces. Active nutrient uptake during the off-cycle functions closer to design intent.

Grower at daily monitoring

Check and log reservoir temperature alongside EC and pH. Temperature is the variable that explains the behaviour of the other two -- pH drift rate and EC drift rate both correlate with reservoir temperature in Bangkok conditions. A temperature reading takes 10 seconds with a probe and provides the interpretive context for every other measurement taken that day.

Anomalous EC or pH readings are diagnosable against temperature rather than triggering immediate nutrient adjustments that may be addressing the wrong variable.

Grower at top-up routine

Top up with plain water when EC is at or above target and with dilute nutrient solution when EC is below target. In Bangkok hot season, plain water top-ups will be the majority of additions because evaporation drives EC up faster than crop uptake drives it down. Check EC before adding anything. Never add nutrient solution to a reservoir that is already at or above target EC.

EC stays within the target range without accumulation events that require full reservoir replacement. Nutrient solution use reduces compared to topping up by formula regardless of current EC.

Grower at root inspection

Inspect bottom port root zones at every weekly maintenance interval, not just when visible symptoms appear on the canopy above. Root browning and slime at the base of the tower precedes canopy symptoms by 5 to 7 days in our cycles. Catching root zone stress at the bottom ports before it propagates upward is only possible with proactive inspection -- the canopy of a tower gives a delayed and partial picture of what the root zone is doing.

Early root zone issues at bottom ports are identified and addressed before crop loss. Canopy health at the top of the tower stops being used as a proxy for whole-system health.

Logging reservoir temperature as a daily measurement alongside EC and pH. Most growers test solution chemistry and skip temperature entirely, then cannot explain why their EC and pH readings behave differently across seasons. In Bangkok, reservoir temperature is the master variable that governs how fast EC drifts, how fast pH shifts, and how effectively the roots can use the nutrients being delivered. Skipping it leaves the most explanatory variable off the log.
